To look at the transmission tests via reflection

expedition on 25/september/2004

Laser transmission test succeeded with F5PNP, range 21 km
between Montmorency and Ivry sur seine

equipment:

rx: K3PGP receiver + telescope 114X900
tx: AM transmitter, laser diode 3 mW 670 nm (red)

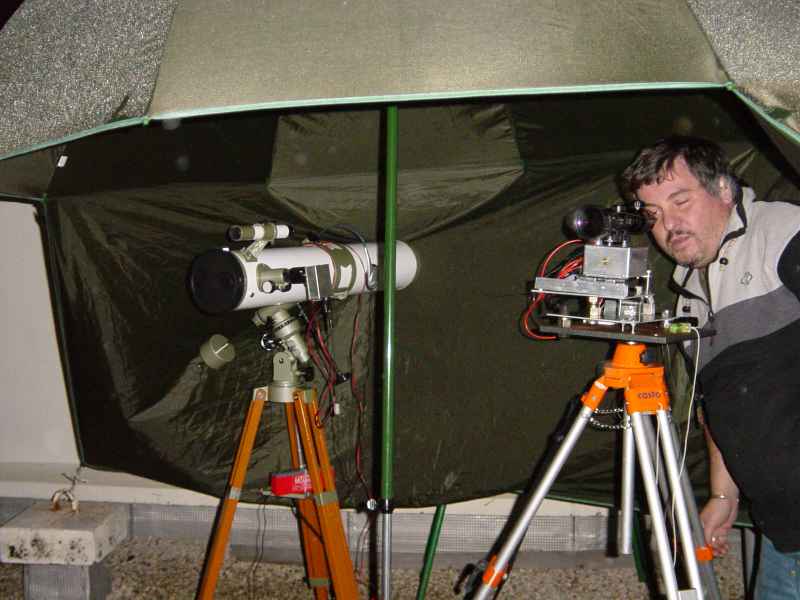

F5PNP uses the same equipment

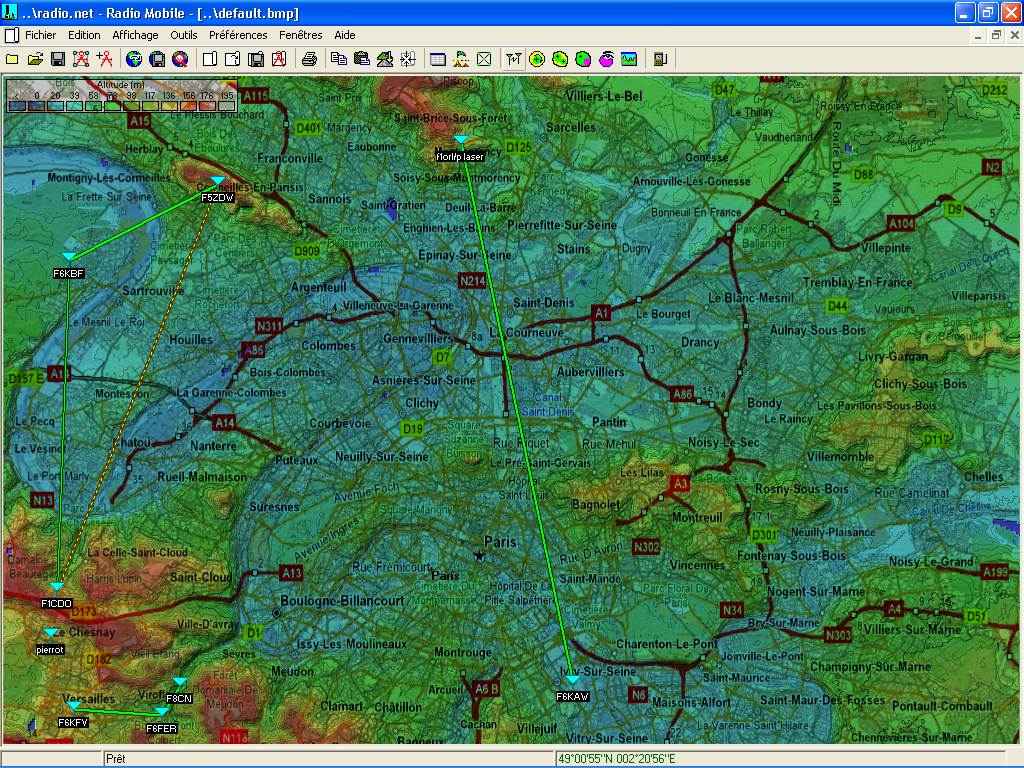

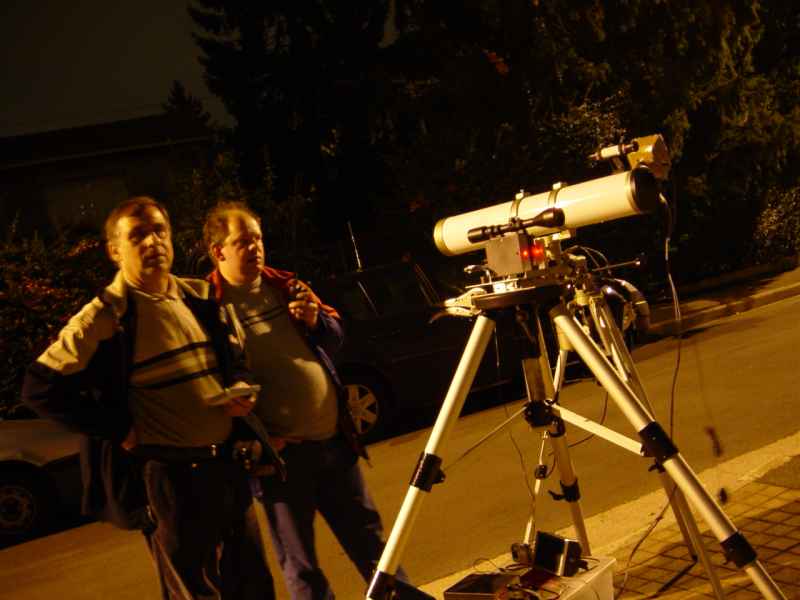

Path map F1AFD and F1ORL F5PNP

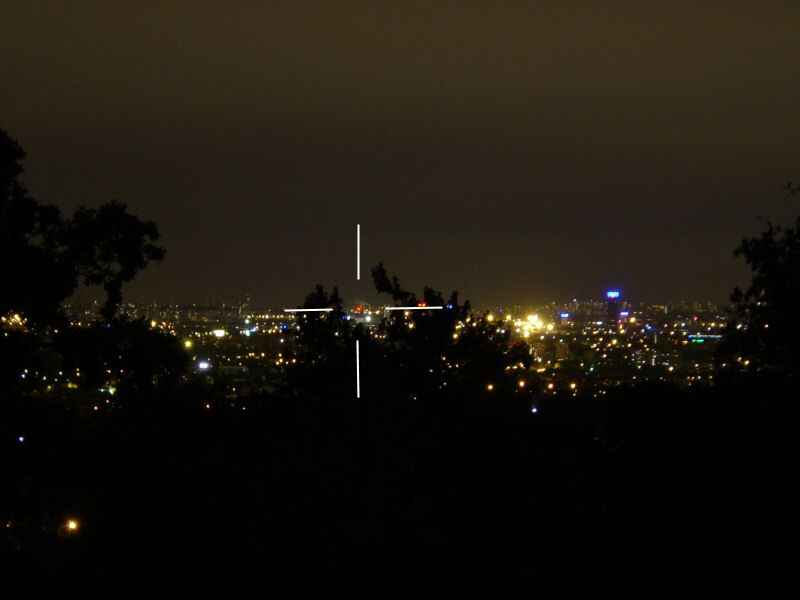

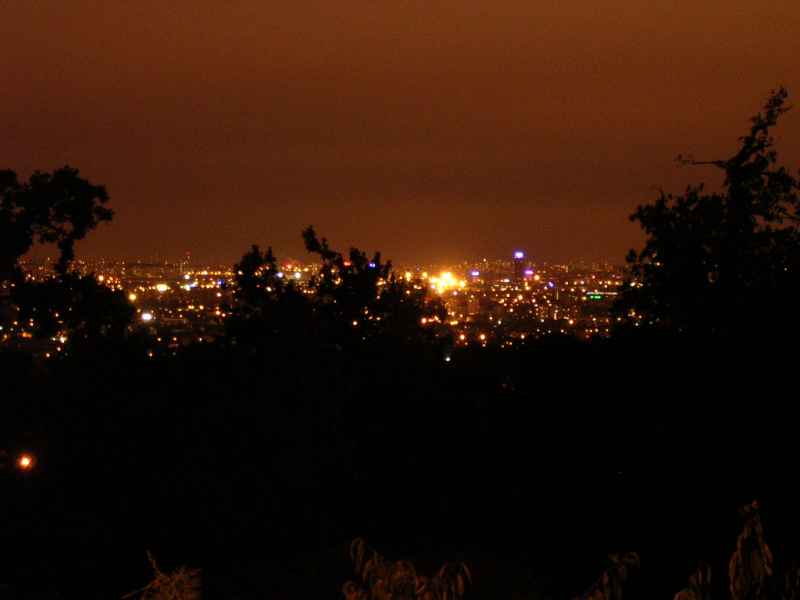

View of laser from 21 Km View from Montmorency

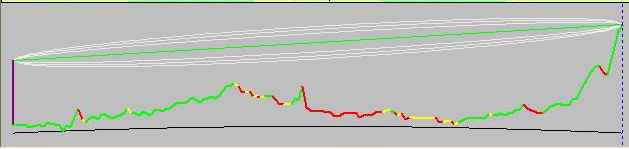

Altidute path with "RADIO MOBILE" program
