To look at the transmission tests via reflection

expedition on 16/october/2004

Laser transmission test succeeded with F5PNP, range 60 km
between JN18WC (dpt10) and JN17RP (dpt89)

equipment:

rx: K3PGP receiver + telescope 114X900
tx: AM transmitter, laser diode 3 mW 670 nm (red)
F5PNP uses the same equipment

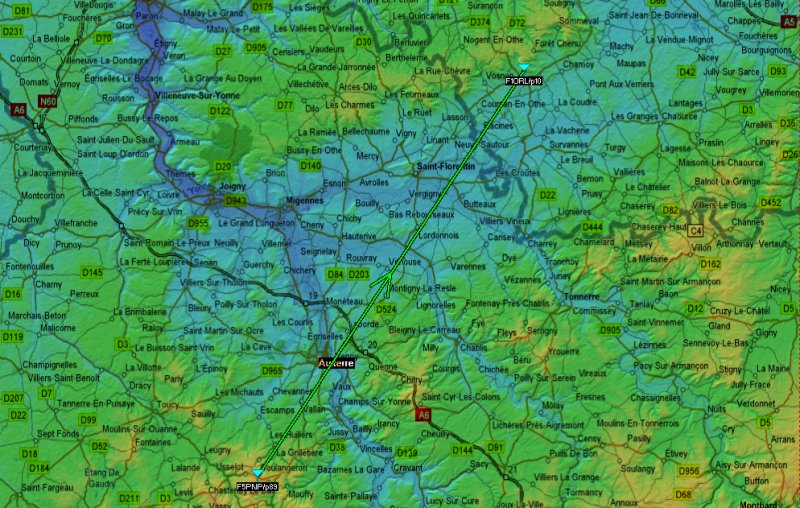

Path map F1ORL's station

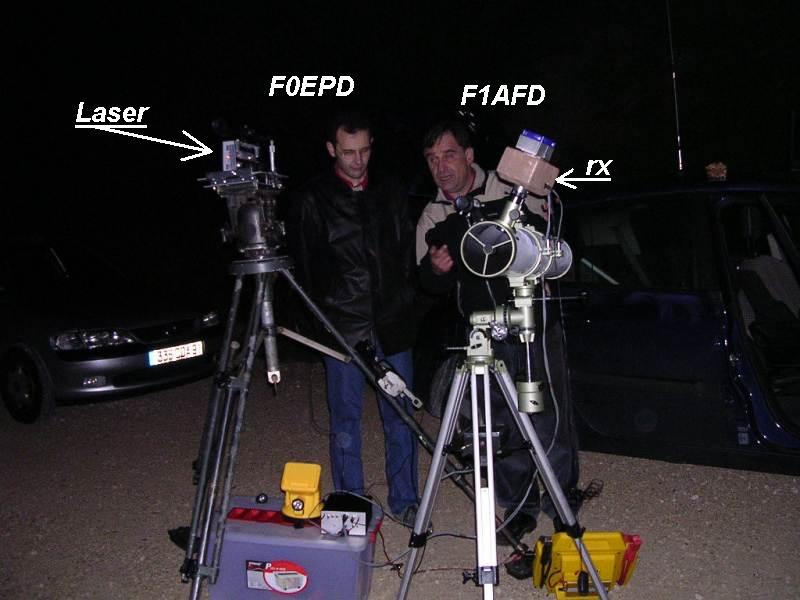

with F1AFD and F0EPO		 F5PNP's station

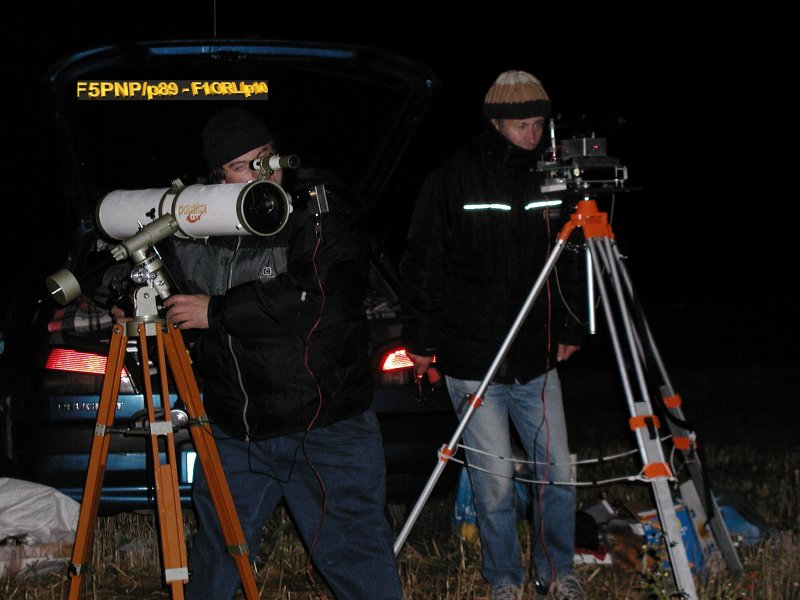

with F5PNP and F4ENL
View of laser from 60 Km (F1ORL side) View of laser from 60 Km (F5PNP side)

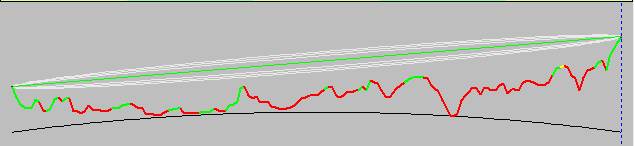

Altidute path with "RADIO MOBILE" program
Part the audio communication between F5PNP and F1AFD HERE (WAV file length=1491ko)
